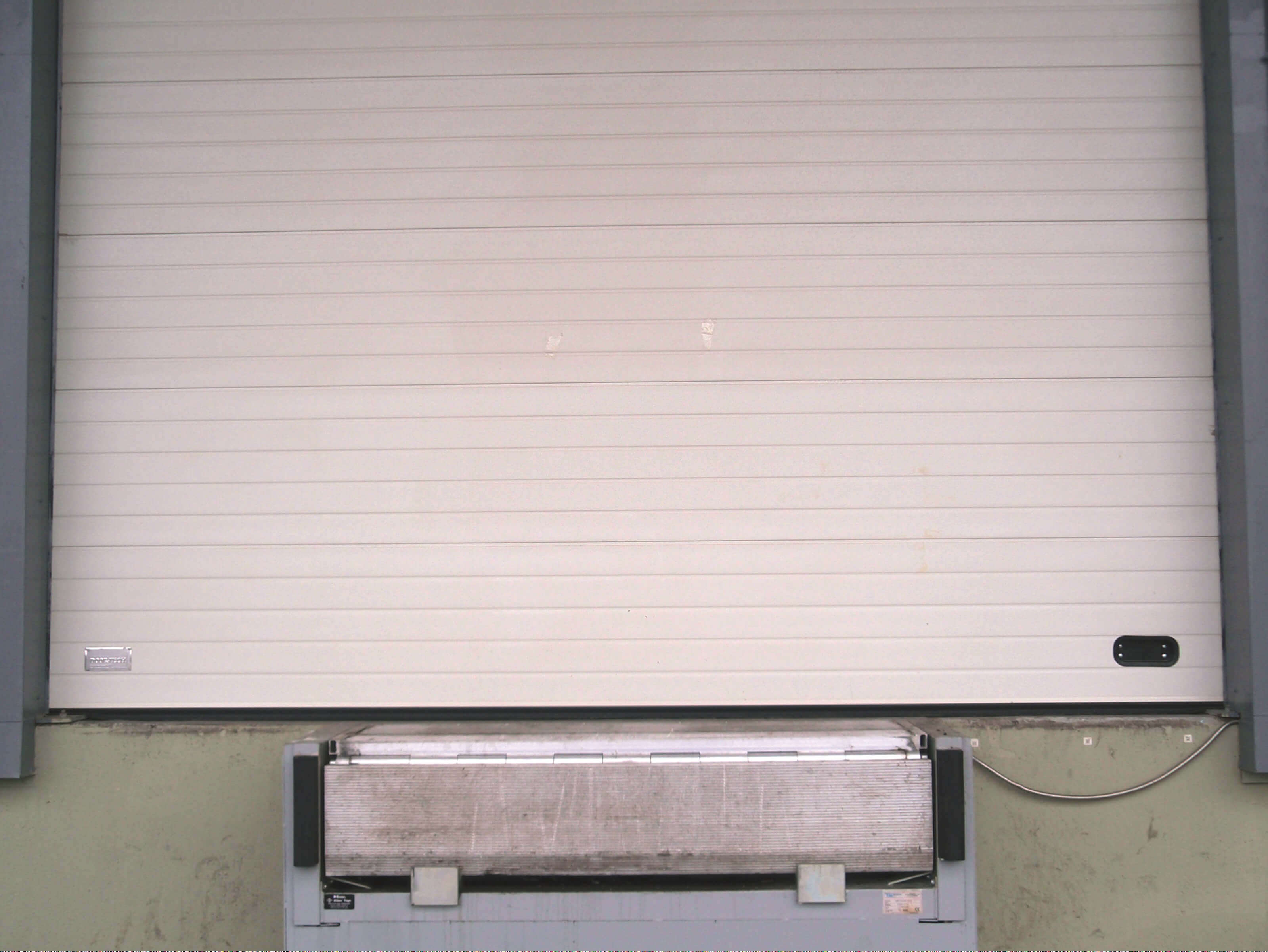

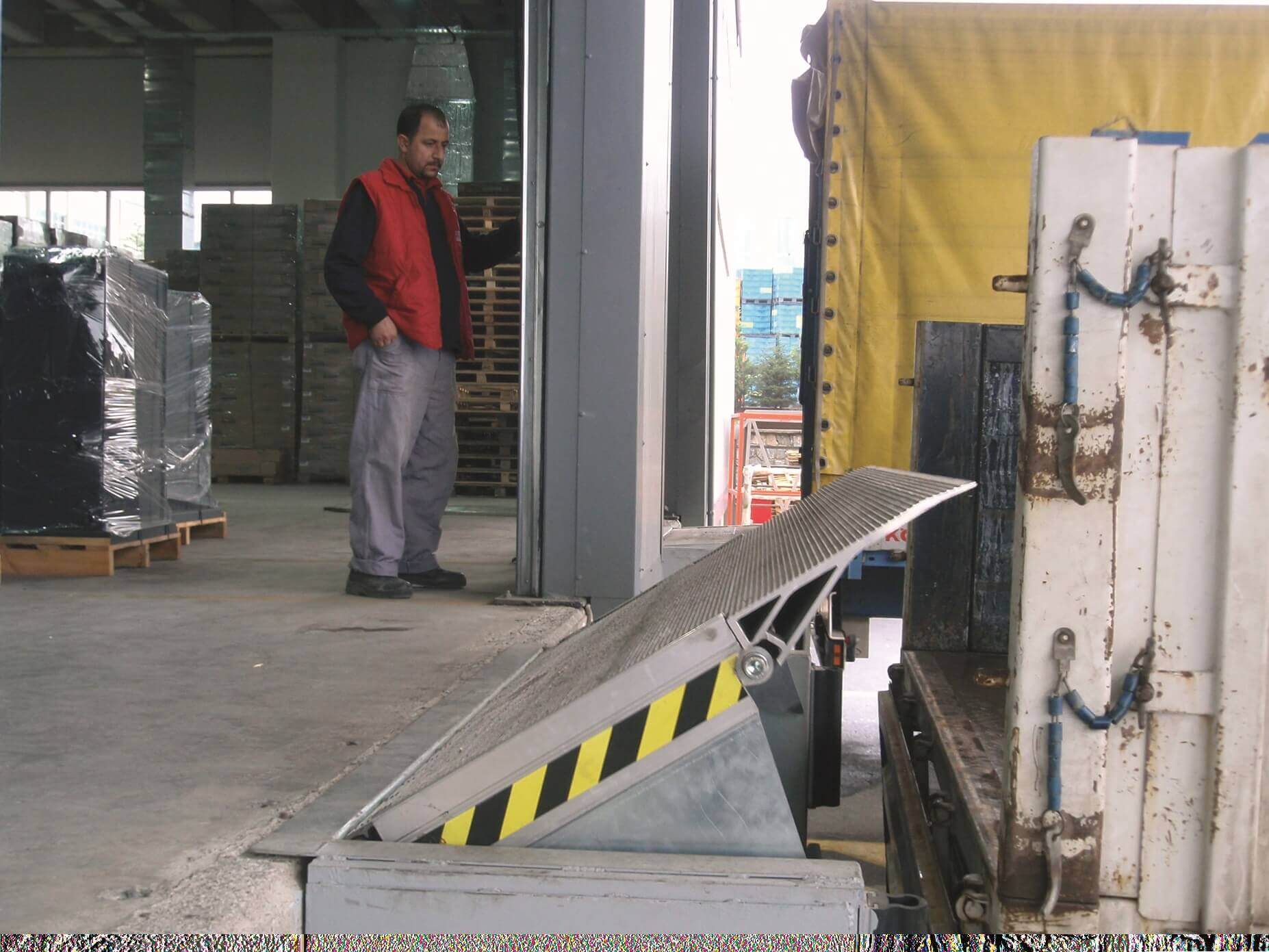

Miniramps with aluminium plate and swing lip have the same advantages of EFFICIENCY AND SMART SPACE OCCUPATION of steel version, above this PLATFORM AND LIP FULLY MADE IN ALUMINIUM can ensure TOTALLY RUST-FREE PASSAGE, EASIER HANDLING AND LOW MAINTENANCE.


Nominal Length:

2000 mm

Nominal Width:

400 – 700 – 1000 + LIP 370mm


60 kN (6T)


H40mm aluminium extruded profiles

Boxframe (BOX):

Hot dip galvanized steel (optional STAINLESS STEEL

Distancing Structures (STD):

Hot dip galvanized steel (optional STAINLESS STEEL)

Manuel Version:

Removable rigid handlebar; Gas struts assistance

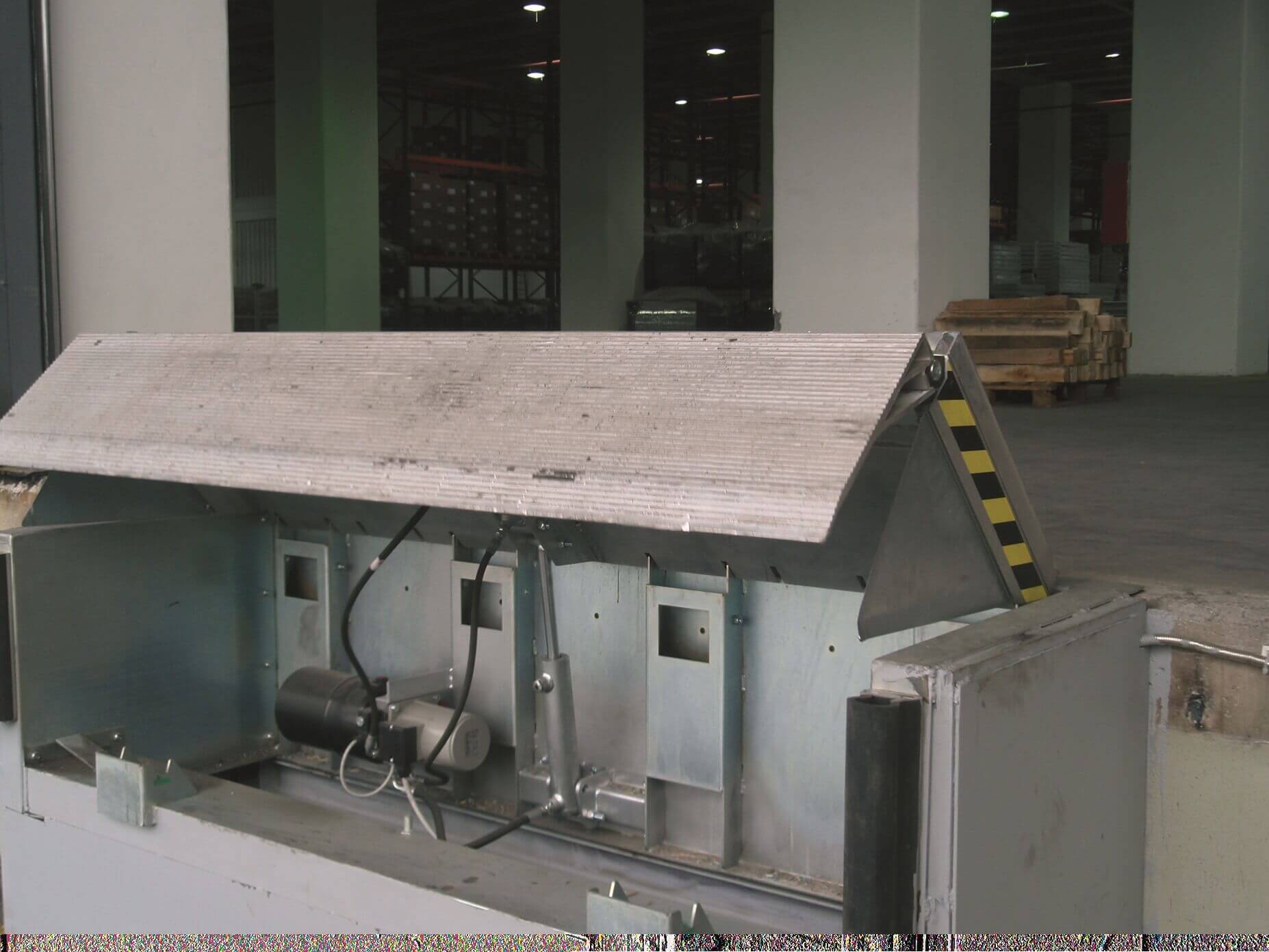

Hydraulic Version:

Hydraulic system with 0.75kW control unit and  380V threephase 50Hz control panel

Max. Concentrated Load On Platform:

1,3 N/mm²

Lip Material and Length:

Aluminium 370mm

European Standard:

EN 1398 Dock Levelers

Accessories Not İncluded:

Dock bumpers (see specific sheet); Handrails
