Hermetic

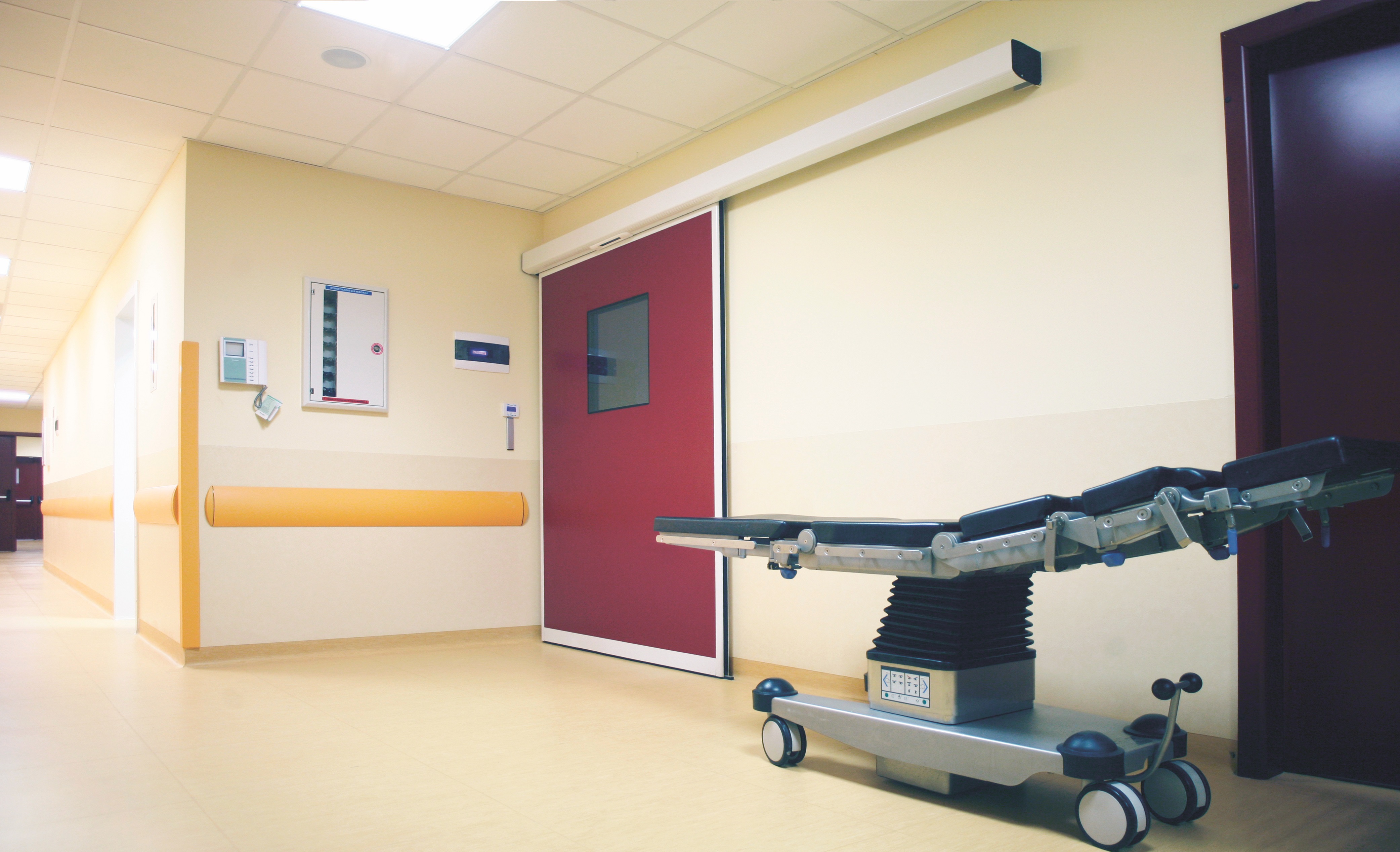

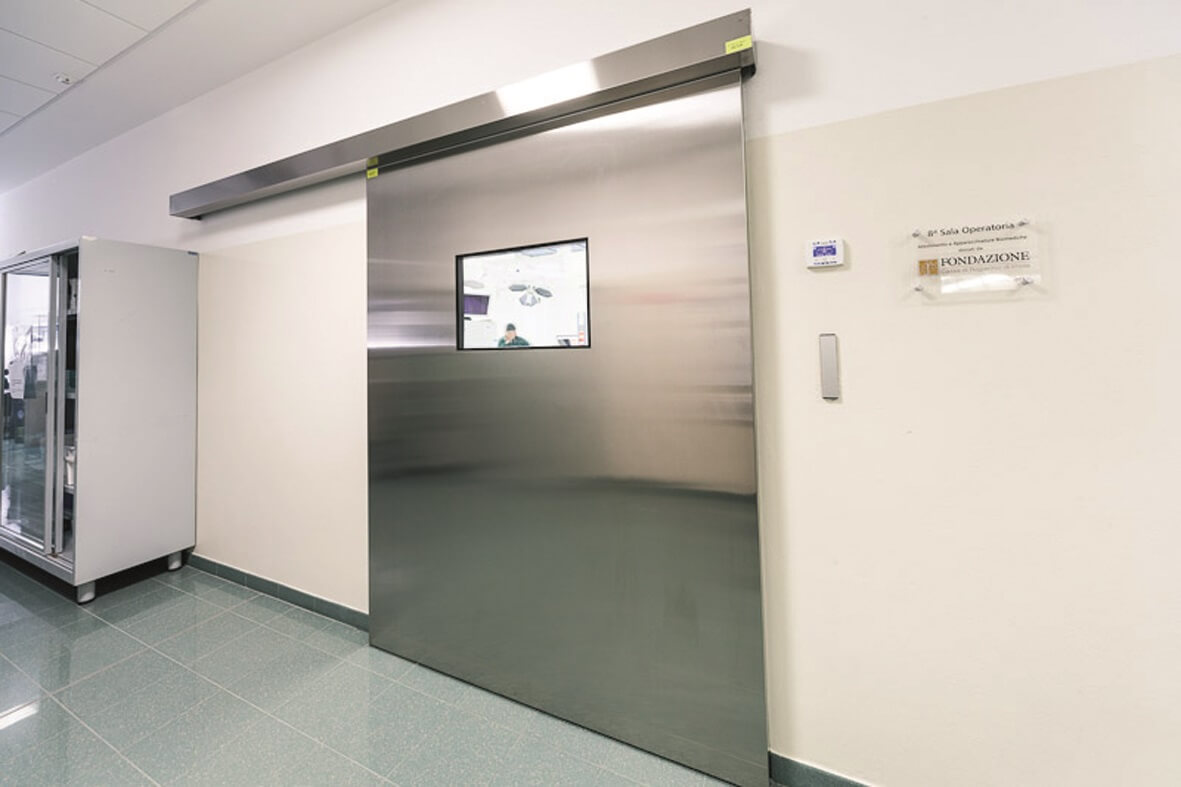

Label Hermetic Door leaf is a system that provides full sealing by making a double movement towards both the floor and the wall during closing.

• The hermetic door consists of a single moving wing.
• The door leaf surface is made of striped stainless plate.
• The wing's inside is made of steel construction, the steel space is filled with polystyrene and covered with 4 mm high-pressure MDF.
• There is no sharp corner around the panel to prevent any accident.
• Wing sealing gaskets support it.
• While the hermetic door is completely closed, EPDM gaskets are completely seated on the closed surface and 0.0 lt. / sec. Seals more than 140 Pa under airflow.
• HPE 130 Mechanism system 150 kg. / wing carrying capacity and closed with a stainless cover.
• The mechanism has a rail system that creates double movement and has a structure that provides sound insulation.
• While the door is closing, the wing approaches 10 mm wall and 10 mm floor and provides full sealing.
• Leakage class is in class 2.

STANDARD SYSTEM COMPONENTS

• 1 Stainless Wing
• Aluminium Mechanism Cover
• Automation System
• Function Transmitter
• Battery
• Security Photocells

OPTIONS

• Door Space Frame
• Observation Window (350 x 350 mm)
• Warning Light or Sound

DIGITAL DOOR POSITION SELECTOR

It is an electronic control device designed to easily use it, choose the digitally designed door control system, be locked with a password to prevent it from being used by others, and informs DOOR FAULTS with light and symbol LEDs. HIGH-TECH has a system that enables the door opening and closing speeds, stopping distances, all potentiometer settings, and switch settings without opening the mechanism cover.

THE USER CAN TAKE THE FOLLOWING FEATURES VERY COMFORTABLE

1. Activation of internal and external radar (double-sided traffic flow at the door)

2. Cancellation of internal or external radar (one-sided traffic flow at the door)

3. The complete cancellation of the radars (traffic is not allowed at the gate)

4. The door's wide open b ırakıl be

5. The door can be locked at night

6. Ability to take it to the pharmacy position (the position where the door can be opened 10cm)

7. Winter position (half of the door opening feature
