Explanation

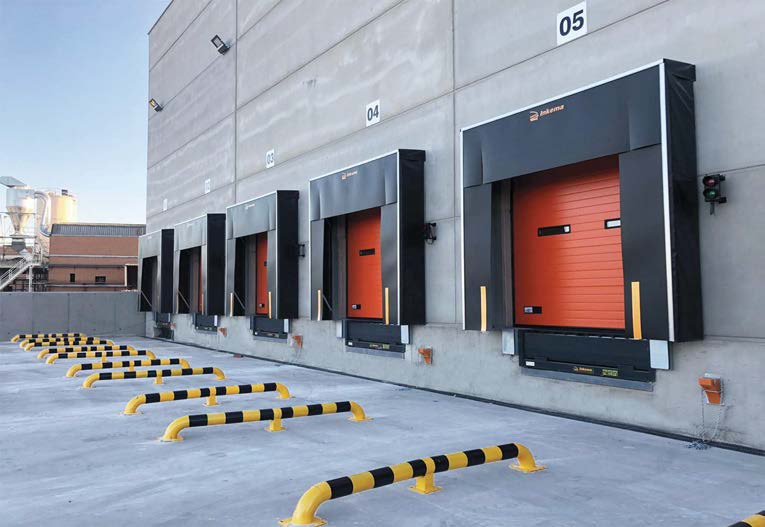

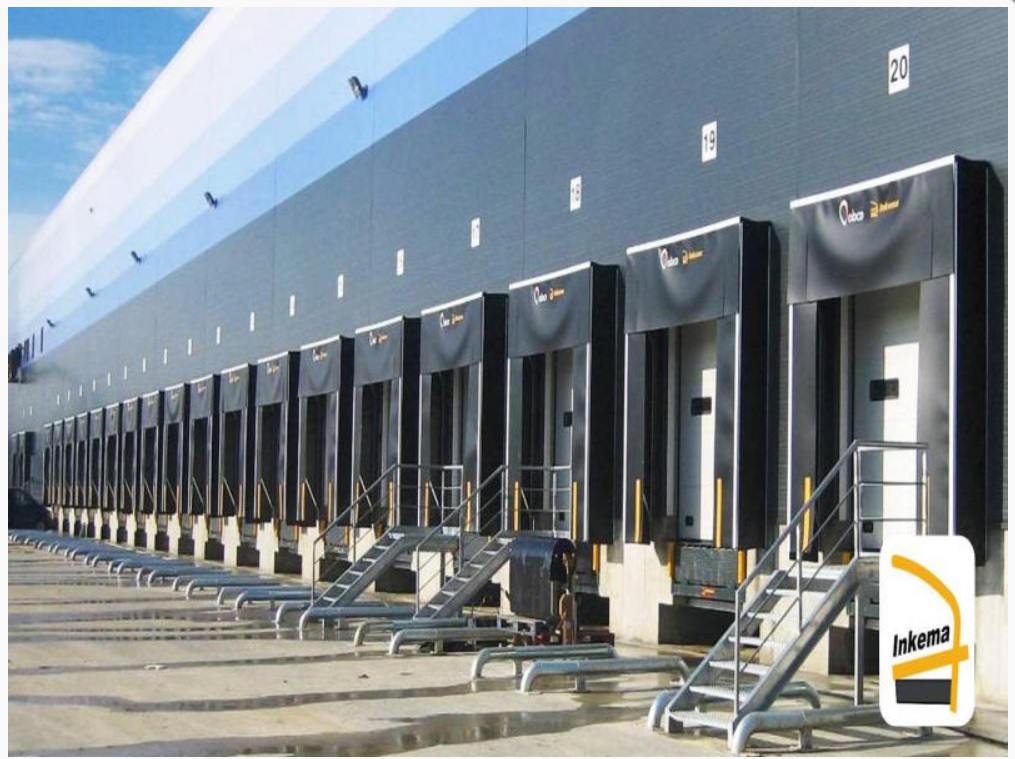

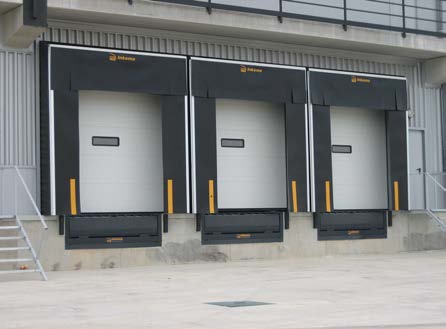

The loading bellows is made of galvanized box profiles and is connected to the front and rear posts so that it can move easily. Thus, it is not possible to damage the bellows during vehicle berthing.

Specifications

The front, side and top parts are formed by combining black PVC with double layer poly canvas, resulting in a strong material against tearing. This material shows good resistance to bad weather conditions, daylight and cold weather conditions.

Blind low-e with traffic used in PVC tarpaulin was extruded main steel special aluminium profile is mounted.

The bellows side and top cover are covered with light grey canvas.

Bellows Dimensions: 3400 mm x 3400 mm x 600 mm
