Eterna Mechanism

Explanation

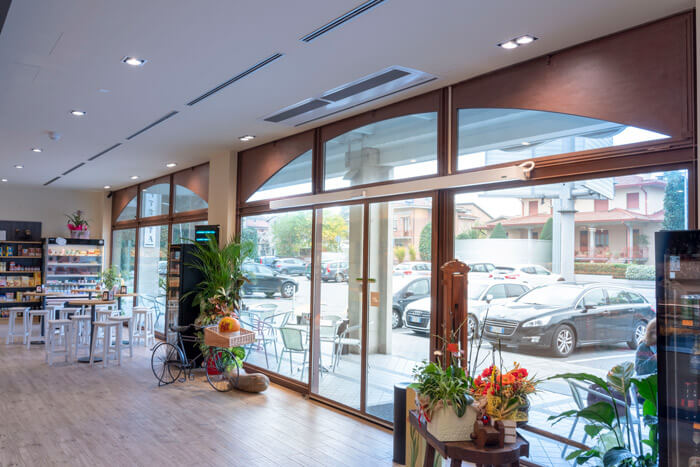

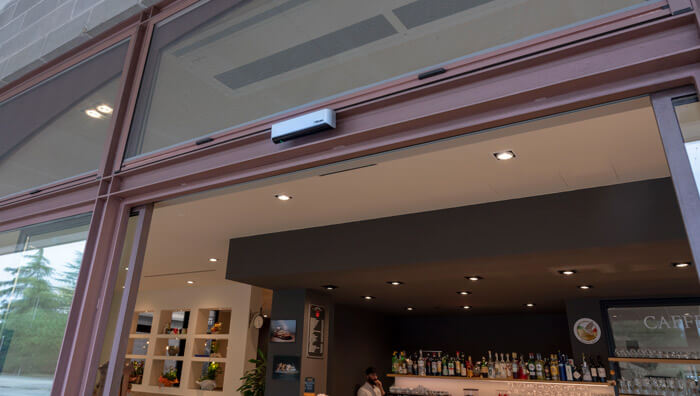

LABEL ETERNA automation systems are equipped with a brushless motor for which LABEL provides a 6-year warranty.
The design is very compact: only 100 mm height and 135 mm width for Eterna 90 model.

Using the app LabelTool, there is a significant reduction in door commissioning and management time:

you can load a library of pre-compiled or previously used files to avoid having to load repetitive information;
you have total control utilizing door reading and writing with detailed multilingual description;
Integrated library of programming files for commissioning or for loading operating parameters. Each file has several descriptive fields that you can fill in, and you need very little memory on your smartphone to store thousands of files

The ETERNA automation system easily performed the series of durability tests exceeding 2,000,000 continuous operating cycles (opening/closing),
Easy to program, the LABEL ETERNA automation system requires very little maintenance, is capable of operating in temperatures ranging from -15° to + 50° C and has an IP22 protection class rating

Specifications

MECHANISM TECHNICAL SPECIFICATIONS

POWER TRANSMISSION	90 Waat (German Motor - DUNKER MOTOREN)
MAX. DOOR WEIGHT	100 kg / 1 Wing - 75 Kg / 2 wings
OPENING SPEED	Adjustable speed, 0.70 mt / sec. For every wing
CLOSING SPEED	Adjustable speed, 0.50 mt / sec. For every wing
DECELERATION SPEED	Max. the speed adjustable from 0 speed
WORKING ENERGY	220 Volt
LIMIT SWITCH	Encoder controlled
SECURITY SYSTEMS	Encoder controlled
FORCE RESPONSE	Encoder returns in a controlled manner
OPERATION TYPE	100% continuous working
WHEELS	3 wheel system, specially designed n substituted wear-resistant material (2 + 1 upper lower 60mm diameter 35mm diameter)
CARRIER MECHANISM	Extruded aluminium, balanced wheel bearing

QUIET OPERATION FEATURE (SOUND CUT PILLOW SYSTEM)

Our mechanism system's height is 8 cm. A special bearing system made of polyethene was created in the space on the mechanism rail where the wings are suspended, and a single piece of aluminium rail suitable for the wheel form was placed on it. The rail system running on the existing bed enables the door to operate very quietly. As a result of wear on the rail (as in other automatic doors), only the rail part can be changed instead of replacing the complete mechanism. This system minimizes the risk of high service cost.
